Product Description

This series produces an even, shadow-free illumination. The anti-glare reflector hides the light source, making it ideal for discrete displays.

The side-emitting surface-mounted wallwasher is a high-performance, mid-power light fixture. It also features a built-in heat sink to protect against overheating in hotter climates.

Common Applications: Outdoor, Façades, Hidden Wallwashing and Hot Climates.

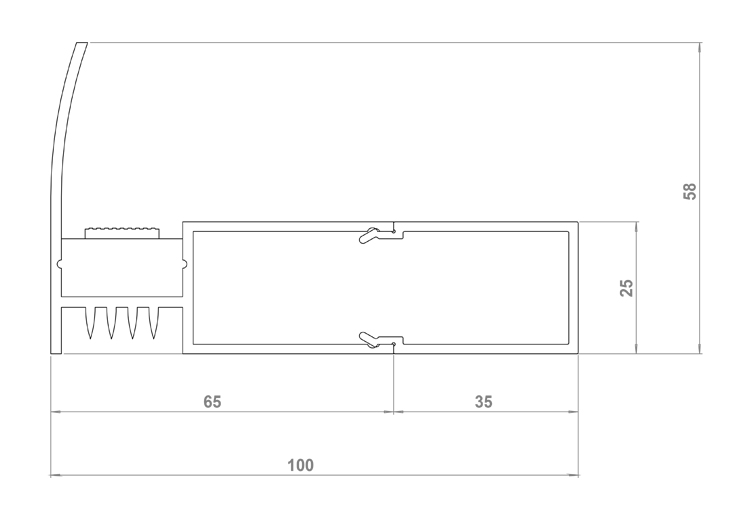

Technical Drawing

Specifications

Mounting

Surface

Wattage

10W/m | 15W/m | 19.2W/m

CCT

2700K | 3000K | 4000K | 5000K | RGB | RGBW | Tunable White

CRI*

>80

*CRI is not applicable for RGB, RGBW and Tunable White.

Optics

10°x65° | 15°x60° | 15° | 45° Asymmetrical

Voltage

24V

Operating Temperature

-25°C to 55°C

Lifetime

>50,000 Hours

Finish

Anodized | RAL

Ingress Protection

IP67

Dimensions

W-58mm x H-100mm x L-334mm
W-58mm x H-100mm x L-664mm
W-58mm x H-100mm x L-994mm
W-58mm x H-100mm x L-1324mm
W-58mm x H-100mm x L-1654mm
W-58mm x H-100mm x L-1984mm
Custom length available
