Product Description

Sama's outdoor lighting range is UV-resistant, ensuring excellent water- and weather-proofing, particularly heat, humidity and dust. The plug-and-play connectors are also waterproofed for an especially robust product.

This range is particularly suited for direct-view lighting on building façades, as well as a host of other applications.

Common Applications: Direct-view Façade Lights, Parking Lots, Cove Lights and Walkways.

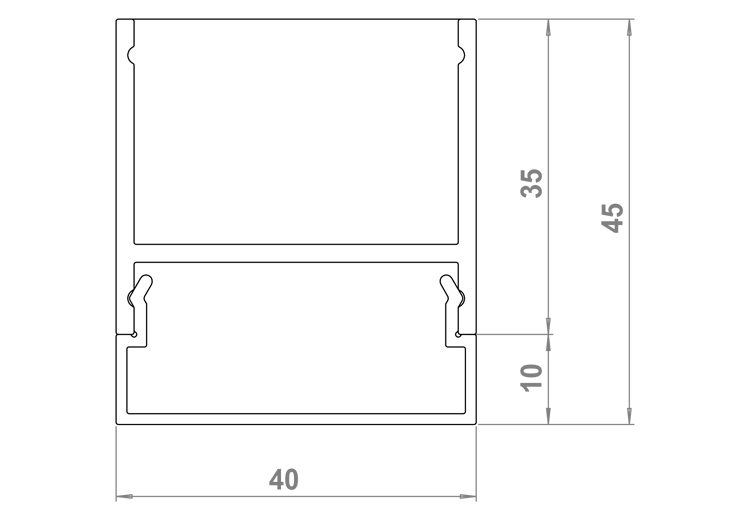

Technical Drawing

Specifications

Mounting

Recessed | Surface | Pendant

Wattage

19.2W/m | 28.8W/m | 38.4W/m | 57.6W/m

CCT

3000K | 3500K | 4000K | 5000K | RGB | RGBW | Tunable White

CRI*

>90

*CRI is not applicable for RGB, RGBW and Tunable White.

Optics

Diffused

Voltage

24V

Operating Temperature

-25°C to 55°C

Lifetime

>50,000 Hours

Finish

Anodized | RAL

Ingress Protection

IP67

Dimensions

W-40mm x H-45mm x L-1000mm
W-40mm x H-45mm x L-1500mm
W-40mm x H-45mm x L-2000mm
Custom length available
