Product Description

This mid-power wallwasher has a focused beam for an even, subtle effect. Similar to the Naham series, this profile is slim and lightweight.

With its resin encapsulation, it achieves superior protection against the elements.

Common Applications: Residential and Particularly Villas.

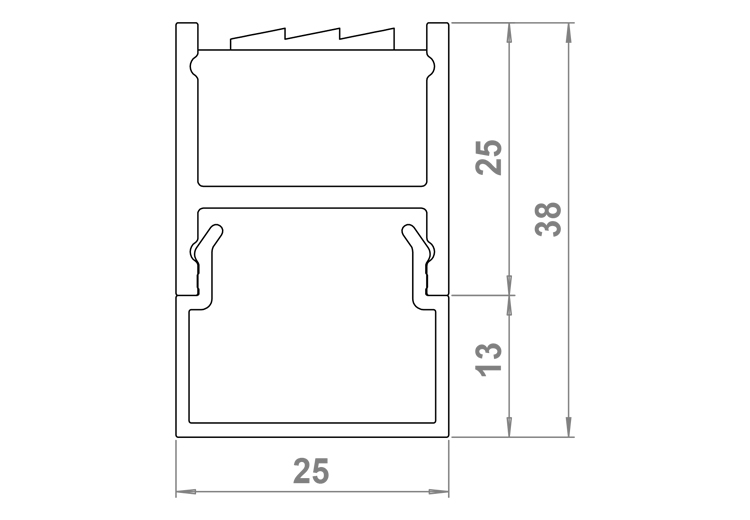

Technical Drawing

Specifications

Mounting

Recessed | Surface

Wattage

15W/m | 25W/m

CCT

2700K | 3000K | 4000K | 5000K | RGB | RGBW | Tunable White

CRI*

>80

*CRI is not applicable for RGB, RGBW and Tunable White.

Optics

10°x65° | 15°x60° | 15° | 45° Asymmetrical

Voltage

24V

Operating Temperature

-25°C to 55°C

Lifetime

>50,000 Hours

Finish

Anodized | RAL

Ingress Protection

IP67

Dimensions

W-25mm x H-38mm x L-334mm
W-25mm x H-38mm x L-664mm
W-25mm x H-38mm x L-994mm
W-25mm x H-38mm x L-1324mm
W-25mm x H-38mm x L-1654mm
W-25mm x H-38mm x L-1984mm
Custom length available
